About the Product
| Product Model | DM20 LED |
|---|---|

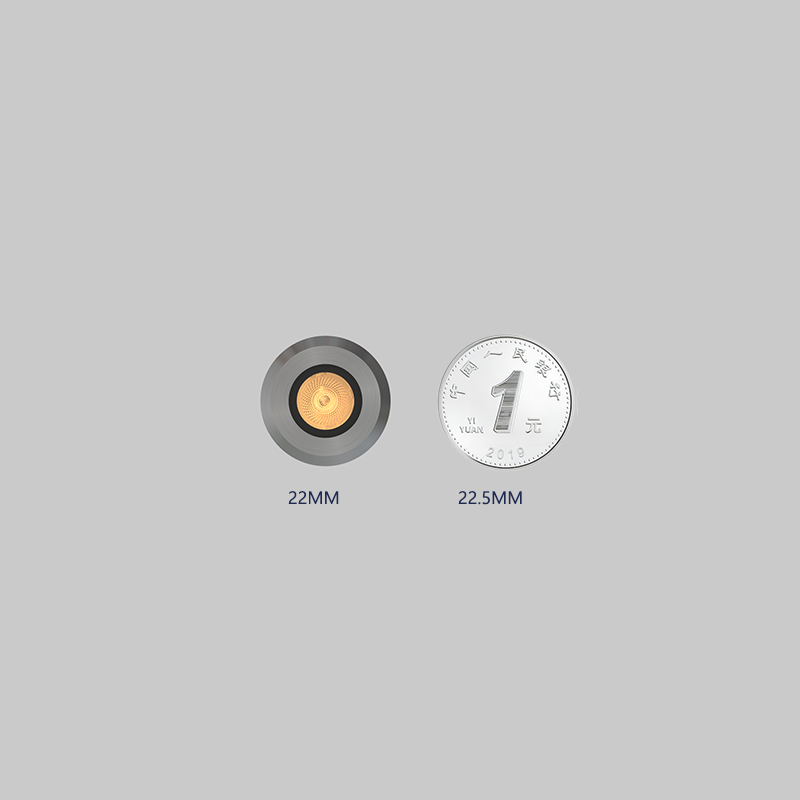

| Product Size | Ø22mm (Diameter) x 45mm (Height) |
| Cut Size | Pre-buried part opening: Ø21mm (Diameter) x 75mm (Height) or Direct opening: Ø19mm (Diameter) x 75mm (Height) |
| Function Control | N/A (No specific function control mentioned) |
| Light Source | SMD LED (RA90) |
| Wattage | 1W at 300mA |
| Weight | Not Specified |
| AC Input | DC24V |
| Driver | Not Specified (May be integrated or external) |
| Reflector Angle | Adjustable to 15, 24, 36, or 60 degrees |
| Color Temperature | 3000K |
| Connecting (Wires/Length/Connectors) | Not Specified |
| Material | Aluminum or Stainless Steel |
| Color/Finish | Stainless Steel Finish |
| IP Rating | IP67 (Protected against dust and immersion in water up to 1 meter depth) |
| Installation Method | Recessed Embedded with Optional Pre-buried Parts |
| Optional Accessories | Honeycomb Grid Available |

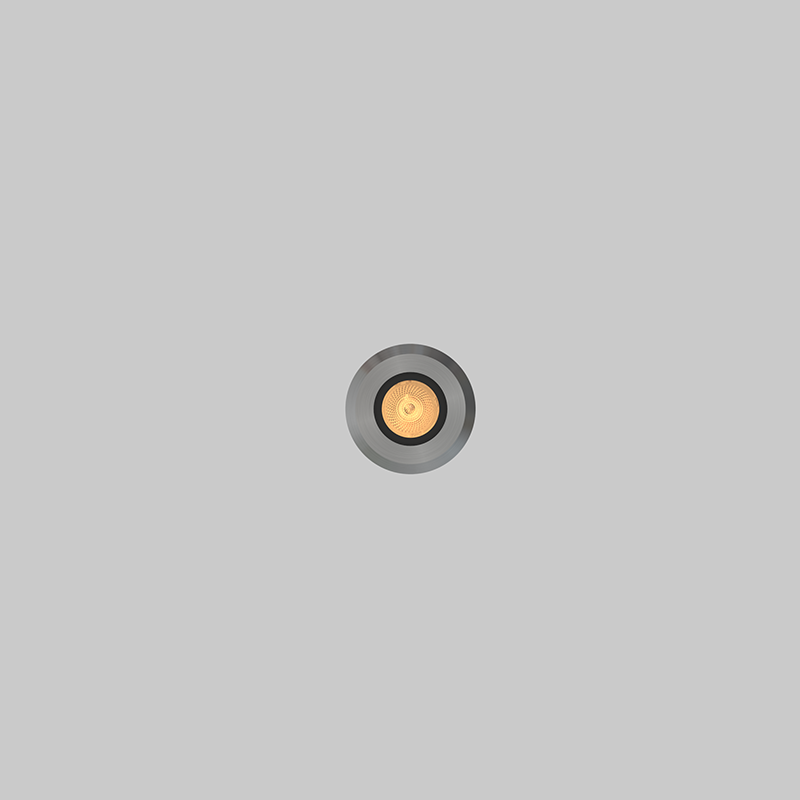

DM20 LED Ground Light is a compact yet powerful recessed lighting solution designed for outdoor use. With a diameter of just 22mm, it blends seamlessly into pathways, gardens, and architectural features. Built with a stainless steel finish and IP67 waterproof rating, this fixture ensures durability against rain, dust, and even short-term submersion.
Powered by a 1W SMD LED (RA90), the DM20 offers warm 3000K illumination with adjustable reflector angles (15°, 24°, 36°, or 60°), giving you control over beam spread. Easy recessed installation with optional pre-buried parts makes it suitable for both residential and commercial projects. Optional honeycomb grid accessories further reduce glare, delivering professional-grade outdoor lighting performance.
DM20 LED Ground Light – Ø22mm recessed outdoor fixture with 1W SMD LED, 3000K warm light, IP67 waterproof design, and adjustable beam angles (15°–60°). Built in stainless steel for durability, ideal for pathways, gardens, and landscape lighting projects.
