MG-ZB17070-B Low-Voltage Inground Light — 10°–60° Beam Angles
Fast Shipping
Carrier information
wire transfer
Payment methods
24/7 Support
Unlimited help desk
Factory Direct
From our plant to you
About the Product
| Product Model | MG-ZB17070-B |
|---|---|
| Product Size | 170mm (Length) x 70mm (Width) x 48mm (Height) |

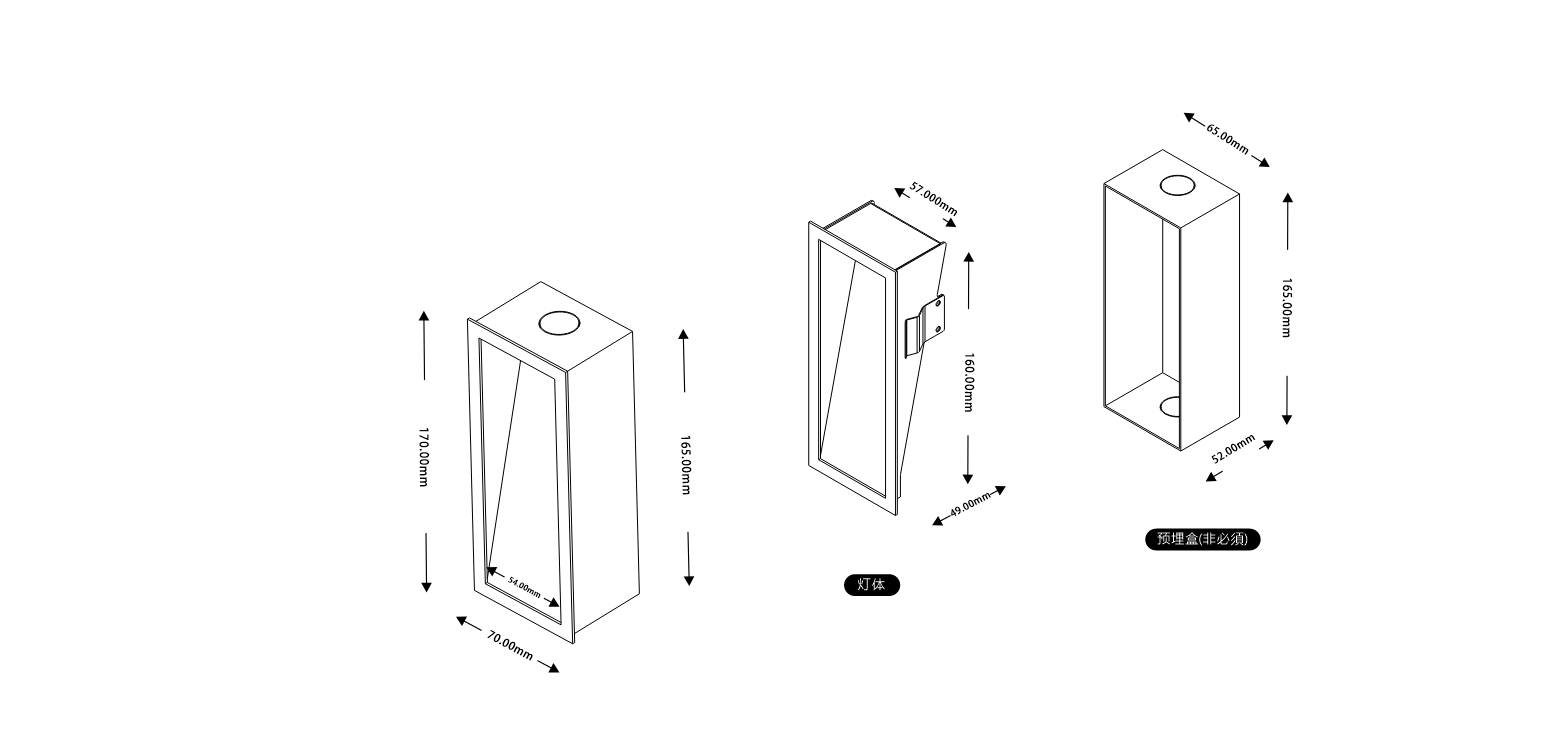

| Cut Size | Refer to installation diagram in specifications |
| Function Control | Switch Control |
| Light Source | OSRAM / CREE LED |
| Wattage | 3W at 700mA |
| Weight | 0.7 Kilograms |
| AC Input | AC220V / DC24V |
| Driver | Provided (Manufacturer: KeGu / SHIKI) |
| Reflector Angle | Not Specified |
| Color Temperature | 2700K, 3000K, 3500K |
| Connecting (Wires/Length/Connectors) | Not Specified |
| Material | Iron with Aluminum |
| Color/Finish | White, Black |
| IP Rating | IP20 (Protected against solid objects larger than 12.5mm) |
| Installation Method | Recessed Embedded |

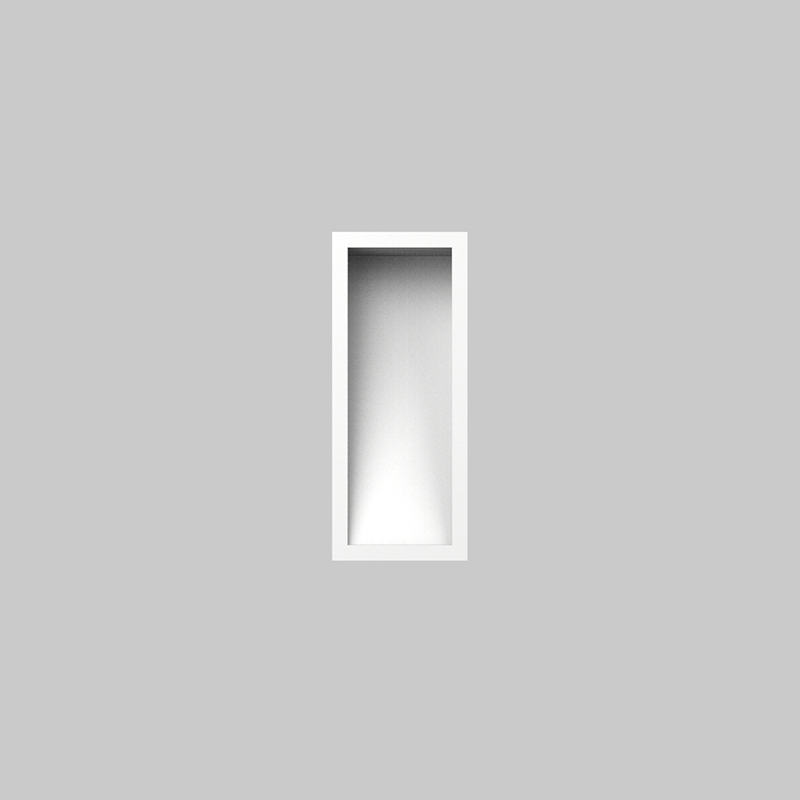

MG-ZB17070-B is a compact recessed ground light built for projects where reliability and repeatable performance matter. We make these in our factory and ship them as production-ready units or as branded OEM samples — whatever fits your procurement process.

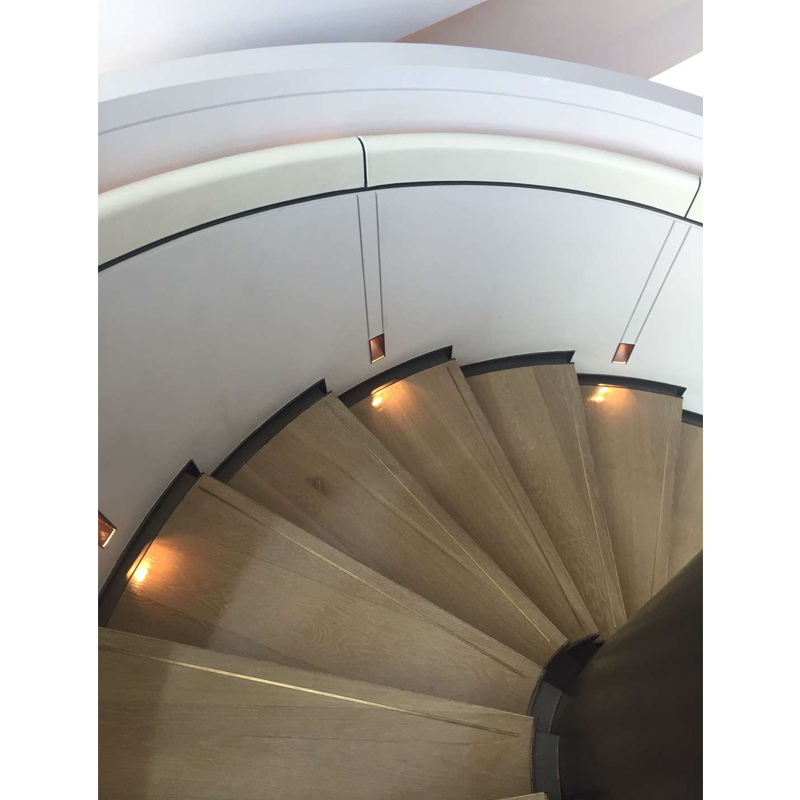

This fixture measures 170 × 70 × 48 mm and weighs 0.7 kg, so it installs easily into standard recessed pockets and stays out of the way once fitted. It’s available with OSRAM or CREE LEDs at 3W (700mA) and comes in three warm color temperatures: 2700K, 3000K, and 3500K — great for landscape accents, hotel pathways, and architectural uplighting where warm, flattering light is preferred.
Factory OEM: MG-ZB17070-B recessed inground light — 3W with OSRAM/CREE options, 2700–3500K. Ships with KeGu/SHIKI driver. Iron+aluminum body. IP20 standard; higher-IP versions available on request
