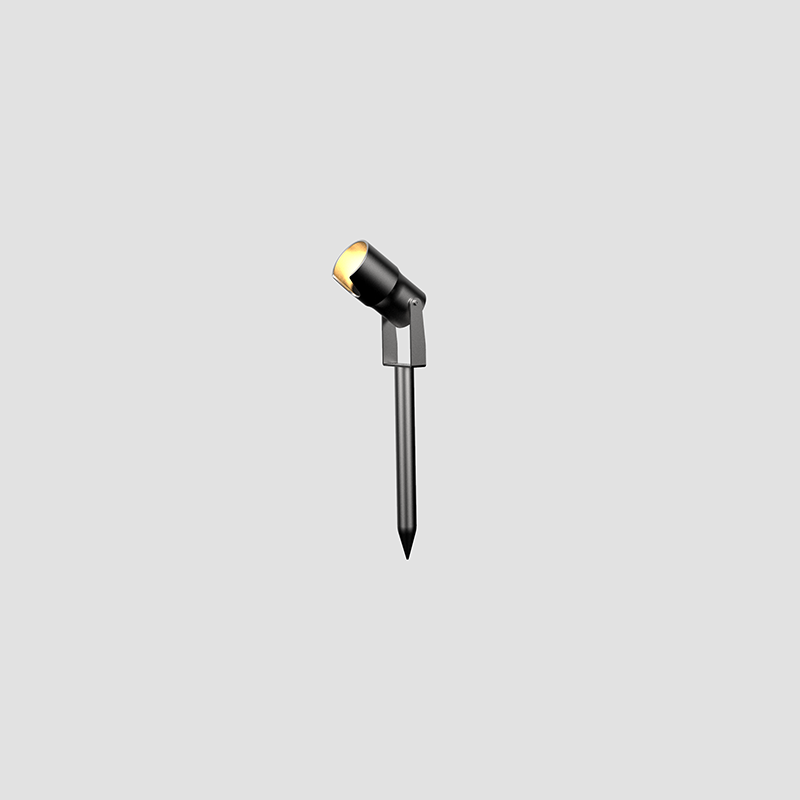

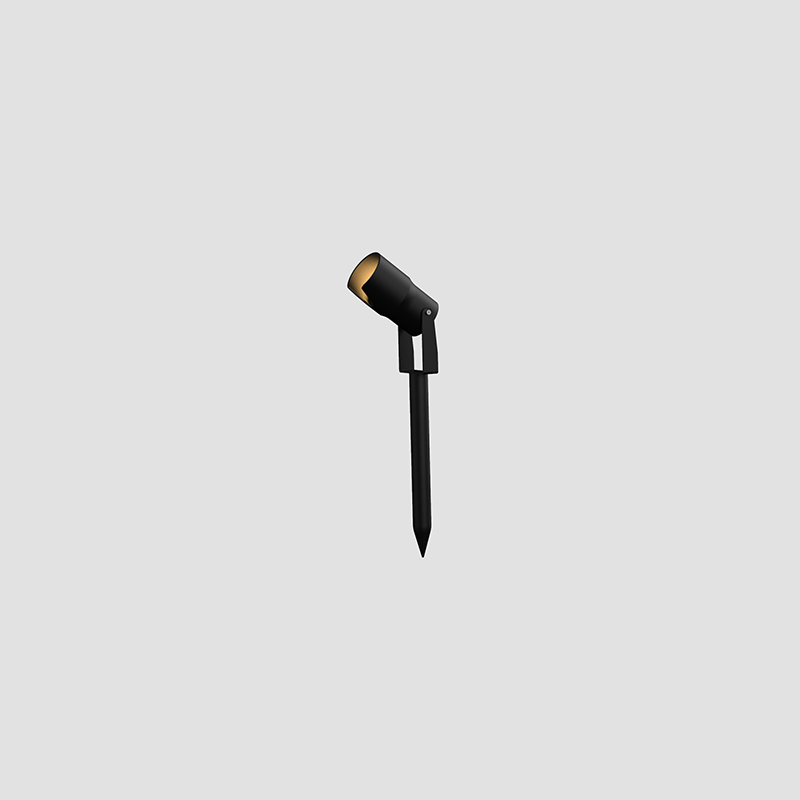

TS50-01B LED Ground Light – IP67 Waterproof Outdoor Lighting | Factory Wholesale



Product Model	MG-TS50-01B
Product Size	Ø50mm*H87
Cut Size	N/A (Not specified)
Function Control	Dali, 0-10V, On-Off
Light Source	DSP LED
Watts	3-10W
Weight	0.6KG
AC Input	DC24V
Driver	Built-in
Reflector Angle	15/30/45/60 degrees
Color Temperature	2700K, 3000K, 4000K
Connecting (Wires/Length/Connectors)	N/A (Not specified)
Material	Aluminum
Color/Surface Treatment	Painted (available in black, silver, gray)
IP Rating	IP67
Installation Method	Plug-in, Surface Mount, Strap Mount

TS50-01B LED Ground Light is engineered for outdoor reliability and architectural precision. With a compact Ø50mm design and multiple reflector angles (15°, 30°, 45°, 60°), it delivers focused illumination for pathways, walls, and landscaping. Constructed from durable aluminum with a painted surface finish (black, silver, or gray), this fixture ensures long-lasting performance under harsh environments.
Equipped with DSP LED technology and built-in driver, it operates efficiently on DC24V power and supports DALI, 0–10V, or On-Off control options for versatile lighting systems. Rated IP67, it guarantees complete protection against water and dust, making it ideal for outdoor architecture, commercial projects, and residential landscapes.
Available in 3W–10W configurations with color temperatures of 2700K, 3000K, and 4000K, the TS50-01B combines style, durability, and flexibility for professional lighting applications.
