About the Product
| Product Model | MG-ZB17070-A |
|---|---|
| Product Size | 170mm (Length) x 70mm (Width) x 48mm (Height) |

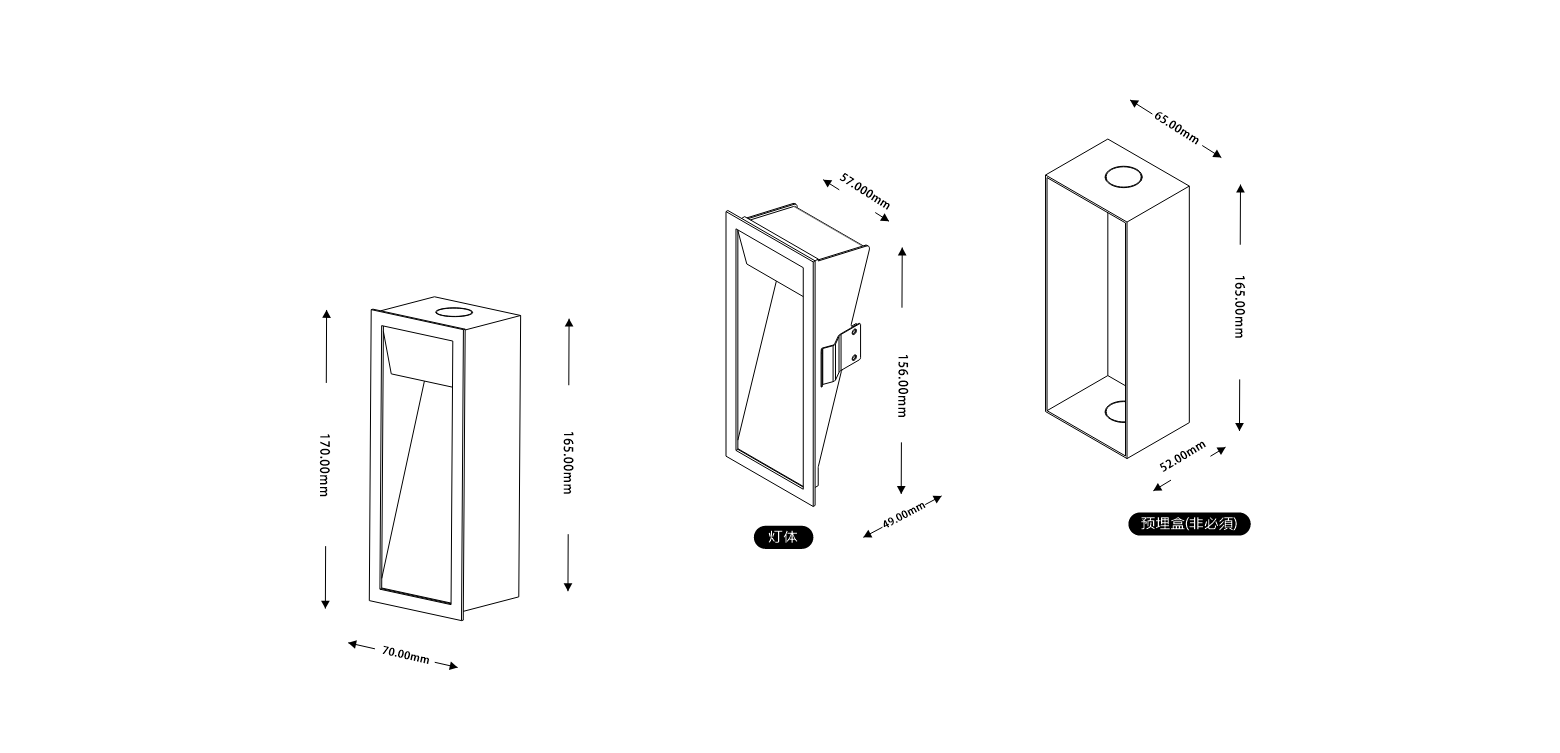

| Cut Size | Refer to installation diagram in specifications |
| Function Control | Switch Control |
| Light Source | OSRAM / CREE LED |
| Wattage | 3W at 700mA |
| Weight | 0.7 Kilograms |
| AC Input | AC220V / DC24V |
| Driver | Provided (Manufacturer: KeGu / SHIKI) |
| Reflector Angle | Not Specified |
| Color Temperature | 2700K, 3000K, 3500K |
| Connecting (Wires/Length/Connectors) | Not Specified |
| Material | Iron with Aluminum |
| Color/Finish | White, Black |
| IP Rating | IP20 (Protected against solid objects larger than 12.5mm) |
| Installation Method | Recessed Embedded |

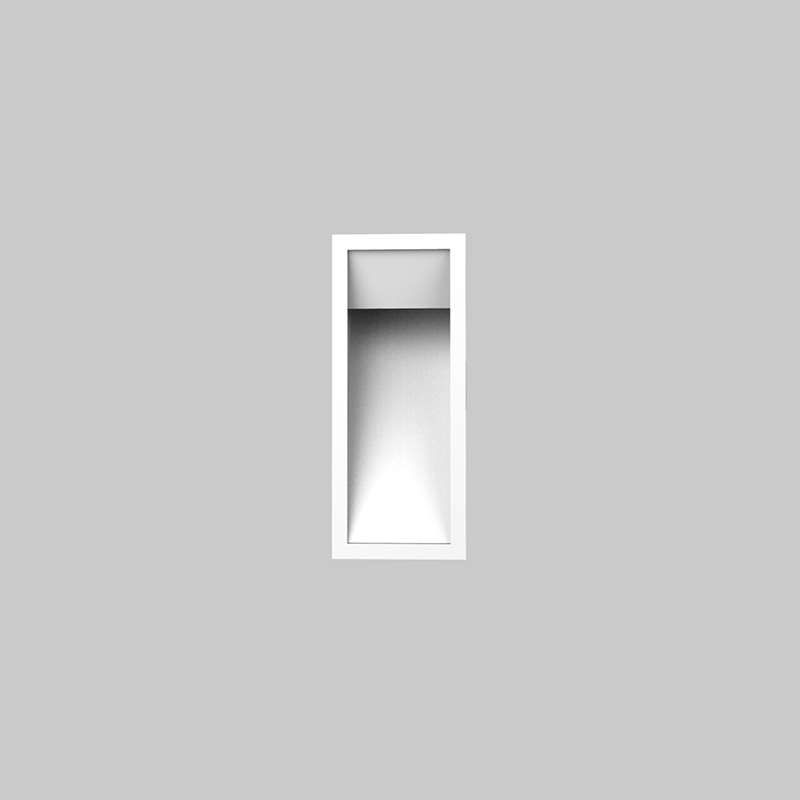

MG-ZB17070-A is a compact recessed in-ground light (170 × 70 × 48 mm, 0.7 kg) built for neat, reliable landscape and architectural installs. It uses OSRAM or CREE 3W (700mA) LEDs with warm color options (2700K/3000K/3500K), ships with a KeGu/SHIKI driver and supports AC220V or DC24V. Housing is iron + aluminum in white or black; standard model is IP20 for protected recessed applications.
Factory-made and OEM-ready — all batches receive electrical checks and aging tests before shipment. We provide samples, custom drivers, higher-IP weatherproof options, and branded packaging. Send quantity and any special requirements and we’ll return a factory quote and lead time.
MG-ZB17070-A recessed in-ground light — 3W with OSRAM/CREE options, 2700–3500K. Ships with KeGu/SHIKI driver. IP20 standard; higher-IP weatherproof versions available on request
