Commercial LED Step Lights: How to Specify Them for Multi-Family and Hospitality Projects

Commercial LED step lights can ace the catalog test and still flop on site. Hotel stairs, paths, patios, and shared corridors demand coordinated mounting, optics, durability, drivers, and finishes; no guesswork.

This guide maps five specification steps, from IP ratings and CCT to manufacturer validation and practical customization.

Key Points: Illuminating Commercial LED Step Lights

• Match venue and mounting: choose recessed, surface, or embedded fixtures tailored to hotel paths, plaza stairs, decks, and corridors.

• Ensure IP67 & IK10 ratings: guarantee dust-tight, temporary-immersion protection plus impact resistance for rain-prone, high-traffic areas.

• Specify CCT & CRI: select correlated color temperatures to complement finishes and high CRI for accurate color rendition and wayfinding.

• Select durable finishes: compare anodized aluminum, die-cast brass, stainless steel, and powder-coating to resist corrosion and abrasion.

• Leverage manufacturer services: use photometric testing, thermal analysis, and OEM customization to validate optics, spacing, and aesthetics.

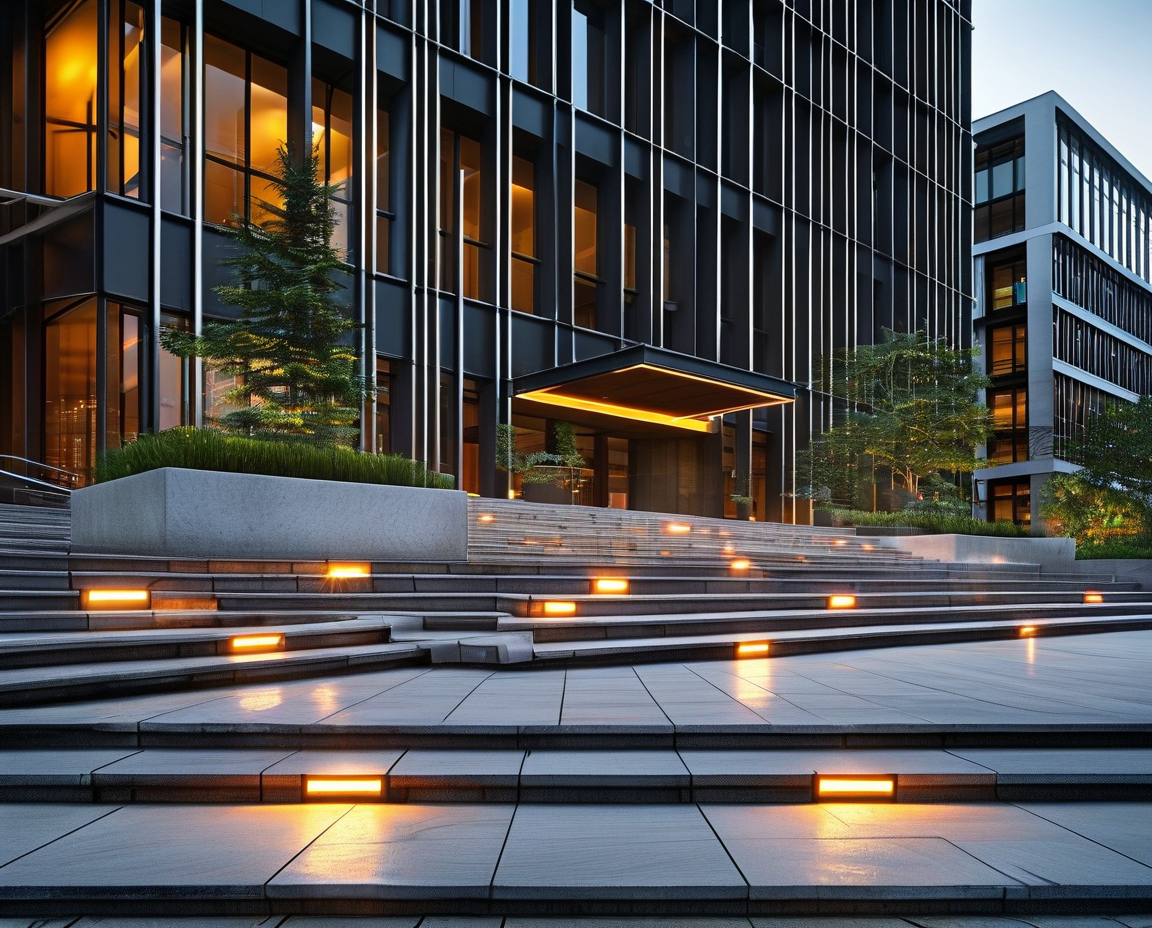

Types Of LED Step Light Fixtures Explained

Choosing commercial led step lights comes down to mounting method, light control, durability, and visual fit. MG Lighting offers LED fixtures suited to hotels, plazas, decks, and patios, helping specifiers balance safe movement with clean design. Here’s how common fixture types differ in everyday projects.

Recessed Stair Fixtures for Hotel Landscape Paths

Recessed models sit neatly inside walls or risers. A recessed housing with a suitable IP rating supports wet location use, while careful glare control keeps landscape illumination comfortable along a hotel pathway. For commercial led step lights near busy routes, check driveover durability where carts or vehicles may cross.

Surface Mount Installation in Commercial Plaza Stairs

A surface mount fixture is a handy retrofit choice because cutting deep openings into concrete is unnecessary.

• A low profile reduces bumps and snags.

• Impact resistance supports busy commercial plaza traffic.

• Weatherproof housing protects LED parts during concrete installation.

Proper placement also helps meet safety compliance goals for commercial led step lights.

Architectural Grade Sconces Versus Pathway Illumination Devices

An architectural sconce puts design aesthetics front and center, while a pathway luminaire focuses on controlled optical distribution. Designers should compare lumen output and color rendering index, which measures how naturally colors appear. Good thermal management also helps LED fixtures maintain performance over time.

Deck and Patio Embedding with Powder Coated Finish

For deck embedding and step integration, sealed fixtures create a tidy finish without bulky hardware. Sealed optics help block moisture, while a powder coated finish improves corrosion resistance around outdoor patio lighting. MG Lighting can also supply durable LED step lights for demanding coastal projects where marine grade materials make practical sense.

5 Steps To Specify Commercial LED Step Lights

Specifying commercial LED step lights gets easier when the project team connects location, weather exposure, light quality, materials, and design support from the start. Good choices help LED step lights look right while keeping circulation areas practical and safe. For hotels, apartments, and public properties, MG Lighting can also support project-specific fixture planning without making the process a headache.

Step 1: Match Application Venues like Hospitality Walkway Lighting

Match output and optics to the actual circulation space.

• Indoor projects

  • hotel lobby steps and commercial corridors often need controlled, comfortable light.

  • multi-family staircases may prioritize consistent safety egress lighting.

• Exterior projects

  • hospitality walkway lighting and outdoor pathway illumination call for suitable mounting and beam spread.

  • architectural accent lighting can balance visibility with design intent.

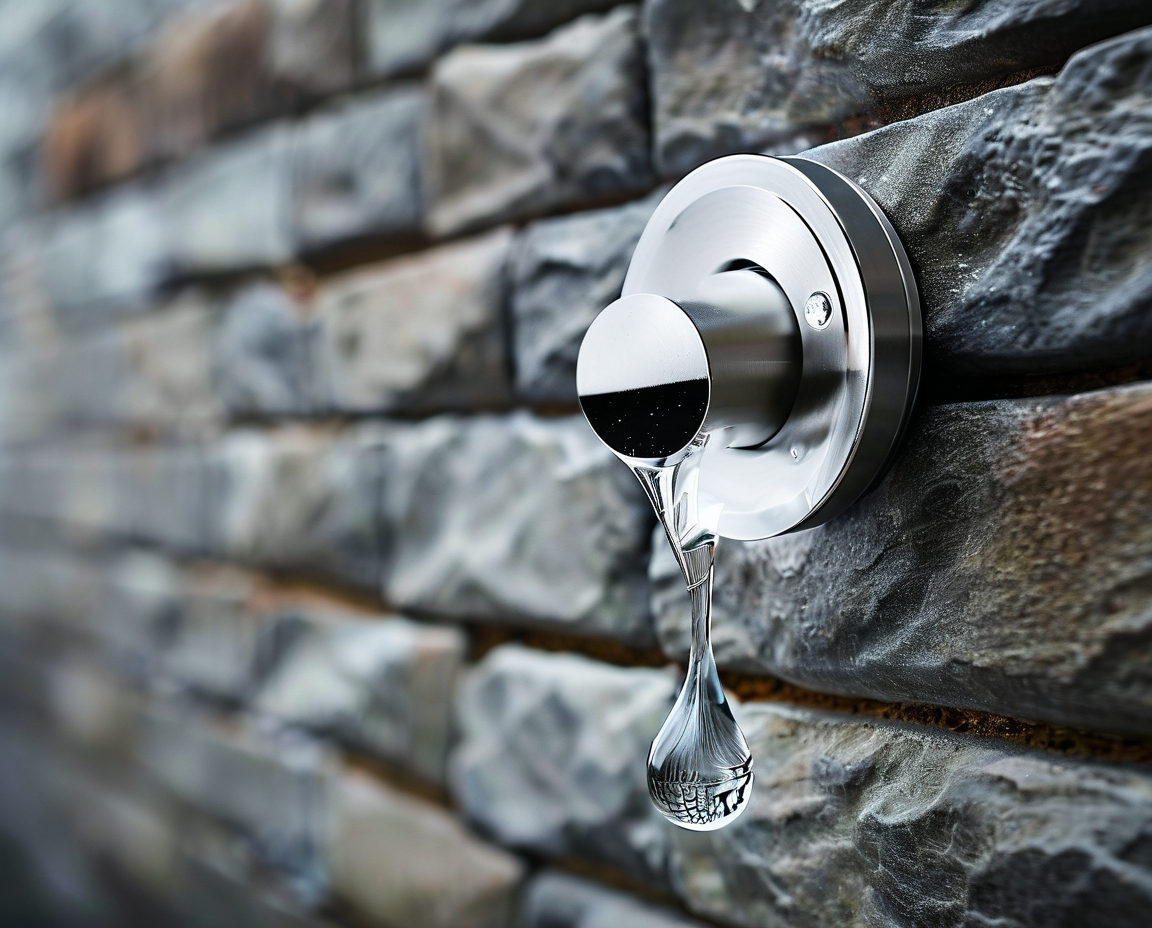

Step 2: Define Required IP67 Waterproof Rating

For exposed commercial step lights, start with the environment.

• Specify an IP67 waterproof rating where rain or temporary immersion is expected.

  • Check ingress protection, the moisture barrier, and sealed optical chamber.

  • Confirm wet location fixtures, outdoor weather resistance, and corrosion resistance needs alongside required certifications.

Step 3: Select Correlated Color Temperature and High CRI

Light quality shapes both comfort and appearance.

• Set correlated color temperature through practical CCT selection.

  • warm white LED can create a relaxed lighting ambiance.

  • high CRI, or color rendering index, supports accurate finishes, signs, and better visual comfort.

Step 4: Choose Material Finishes—Anodized Aluminum Housing or Die Cast Brass Trim

Compare materials against exposure, upkeep, style, and cost.

• anodized aluminum housing

  • supports low weight and useful thermal management.

• die cast brass trim

  • suits substantial architectural hardware aesthetics.

• Stainless options

  • can provide a clean metal faceplate where fixture durability and compatible material finishes matter.

Step 5: Leverage OEM Customization Service and Lighting Layout Simulation

Before ordering commercial LED step lights, validate the design rather than winging it.

• MG Lighting can provide OEM customization service and engineering support.

  • Use lighting layout simulation and photometric analysis to check lighting distribution.

  • Align custom fixture design with dimensions, finishes, spacing, and final project specifications.

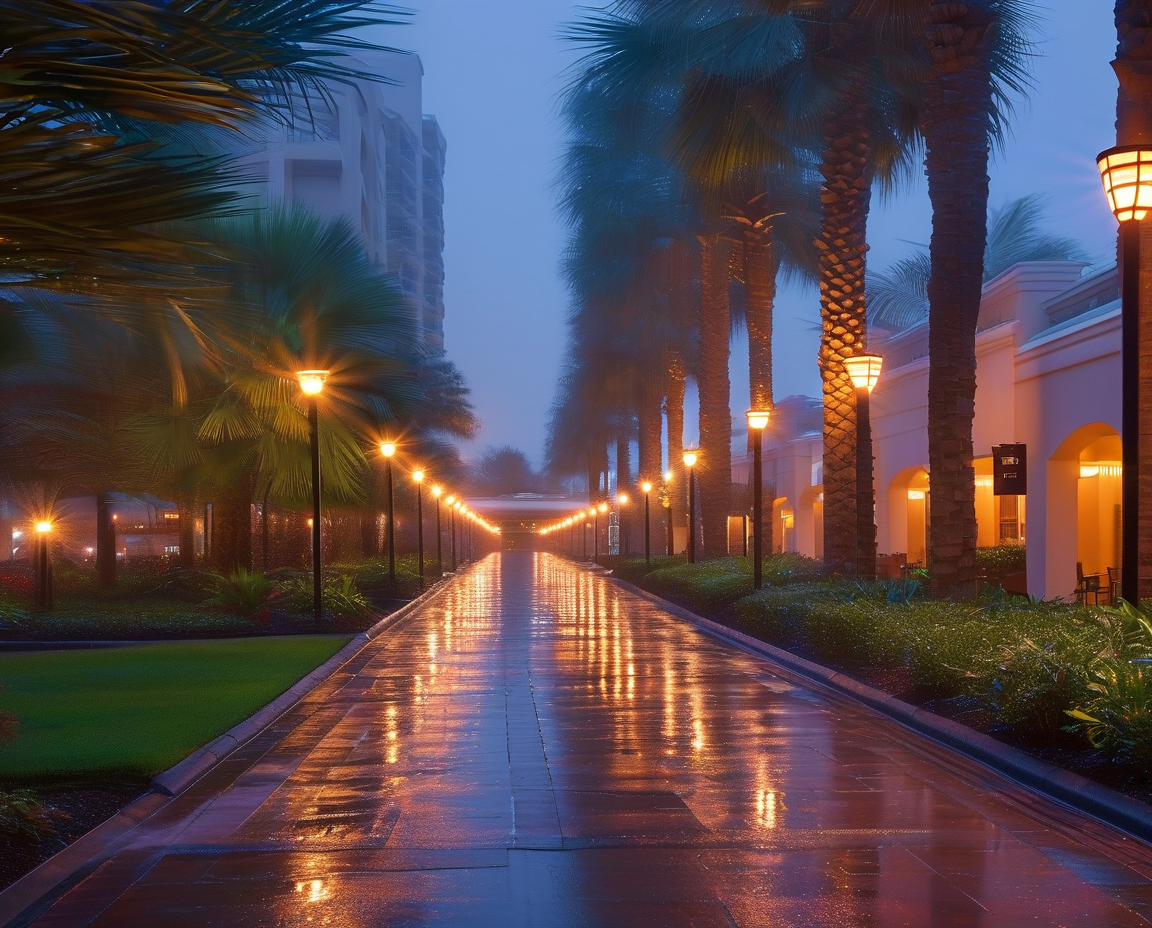

IP Ratings And Outdoor Step Light Durability

Outdoor fixtures face rain, dirt, heat, and the occasional hard knock, so durability is a big deal. MG Lighting designs commercial led step lights around practical protection measures rather than looks alone. For commercial LED lighting on stairs and paths, verified ingress, thermal, and impact performance helps owners cut maintenance while keeping illumination reliable in tough outdoor locations year after year.

Understanding IP67 Waterproof Rating for Harsh Weather

An IP67 rating gives commercial led step lights complete dust ingress protection plus protection during temporary immersion under standardized test conditions.

• Environmental protection

  • Dust: sealed against entry through the enclosure.

  • Water: the gasket seal supports moisture resistance during heavy rain and temporary immersion.

• Practical value

  • Better weatherproofing supports outdoor durability on stairs, patios, and hotel paths.

  • IP67 is more precise than simply calling a fixture waterproof.

Thermal Management Analysis Ensuring Long-Term Performance

Good thermal management keeps LED step lighting from cooking itself. MG Lighting pairs an aluminum housing with useful thermal conductivity so heat dissipation can control junction temperature and protect the LED driver.

These engineering targets illustrate how temperature checks can support operational lifespan; actual results depend on the tested fixture and installation.

IK10 Impact Rating with Tempered Glass Lens for Pathway Illumination Devices

An IK10 impact rating represents resistance to 20-joule impacts under IEC 62262, a useful benchmark for commercial led step lights in busy public areas.

• Fixture protection

  • A tempered glass lens adds impact strength.

  • A strong protective cover helps handle mechanical stress.

• Site benefits

  • Better vandal resistance suits hospitality and multi-family properties.

  • Durable pathway illumination can mean fewer repairs after everyday bumps.
